System 60Classic
當前位置:首 頁 > 產品展示 > 維納爾Wohner > System 60Classic
型號:尺碼 000

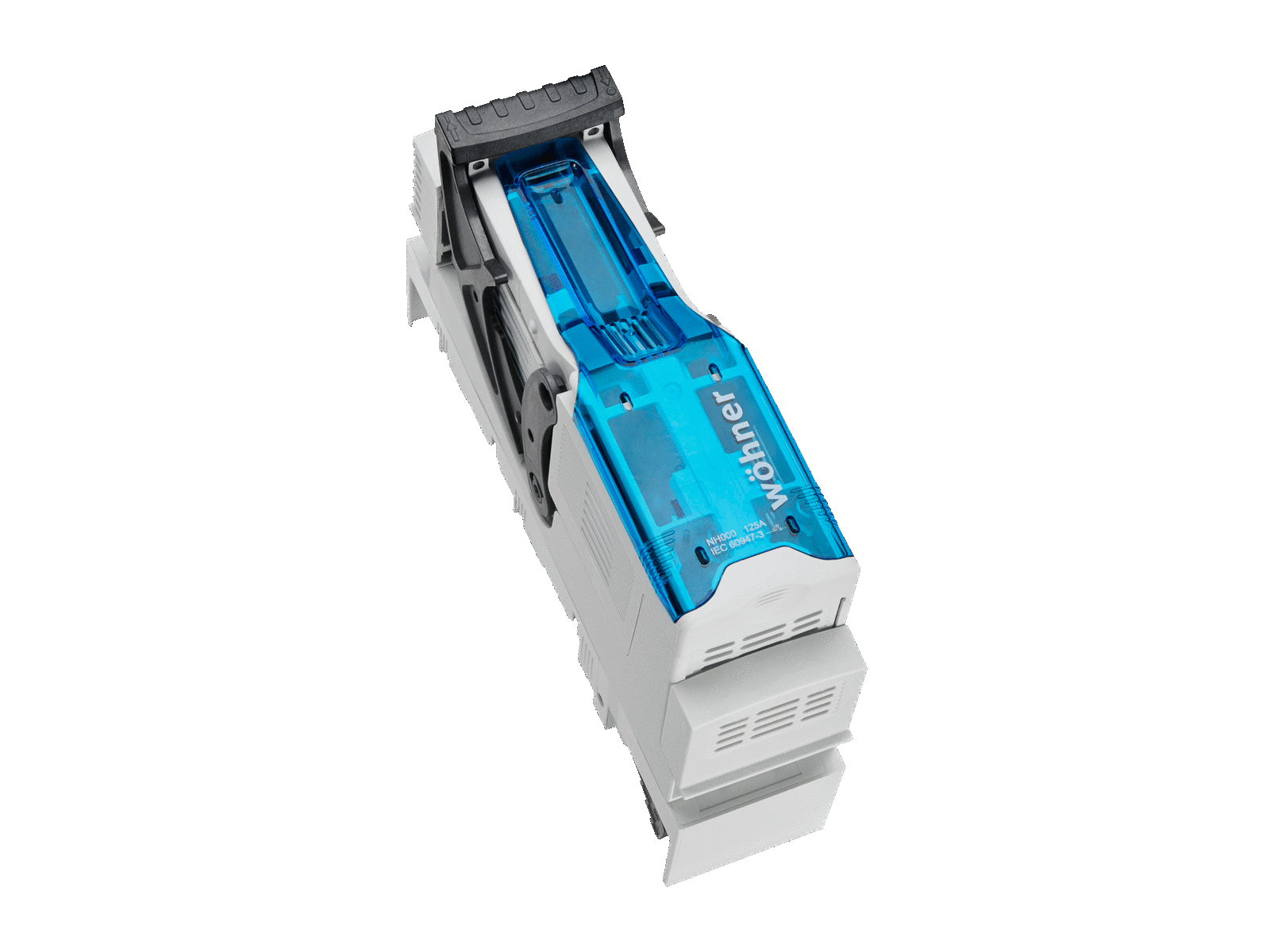

NH 熔斷器式隔離開關
NH 熔斷器式隔離開關
型號:尺碼 000 | 貨號:33802 |
庫存:10 | 交貨日期:天 |
產品介紹
機械數值 | |
寬 x 高 x 厚: | 49.5 x 200 x 127 |
重量: | 53.5 kg/100 |
極數: | 3線 |
適用母線: | 12, 15, 20, 25, 30 x 5, 10 和異型母線 |
正面防護等級: | IP30 |
vertical installation position: | Yes |
horizontal installation position: | No |
固定方式: 獲得專利的卡接機構
連接端
box terminal:
1.5 - 50 mm² flexible and flexible with wire-end ferrules*
2.5 - 50 mm² flexible
2.5 - 16 mm² solid round
2.5 - 50 mm² stranded round
Terminal space 10 mm x 10 mm
(*flexible cables of maximum cross-section may not fit when using wire-end ferrule)
原材料性能 | |
殼體: | 耐溫性最高 125°C, 根據UL 94 有阻燃性, 耐蠕變性 CTI 600 |
蓋罩: | 耐溫性最高 125°C, 根據UL 94 有阻燃性, 耐蠕變性 CTI 600 |
觸點: | 預壓緊彈性銅連接, 鍍銀 |
